<3% Electronic Dry Cabinet

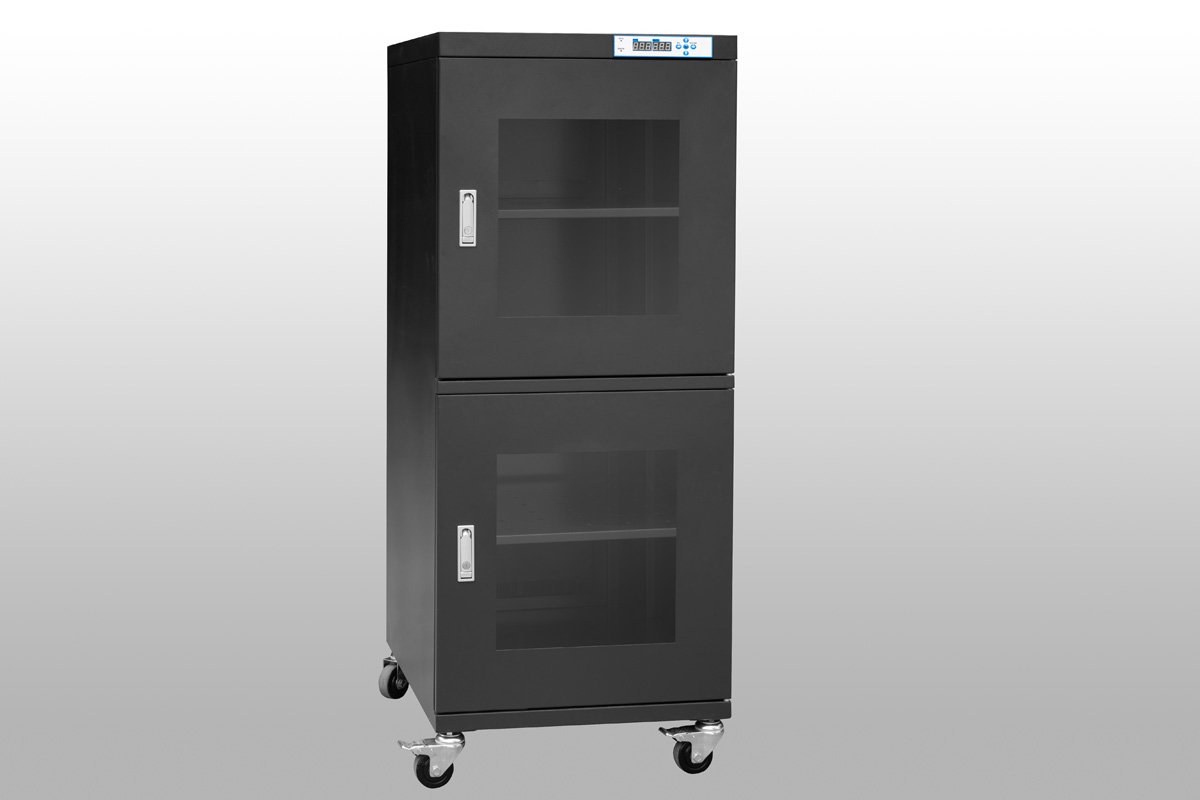

240L Low Humidity Control Digital Dehumidify Moisture Proof Dry Box
Model: TDU240BFD
Color: Black, ESD safe
Humidity Range: <3%RH automatic
Interior Dimension: W596×D372×H1148mm
Exterior Dimension: W598×D400×H1310mm
Packing Dimension: W680×D490×H1500mm
Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ
N.W: 42kg; G.W: 57kg

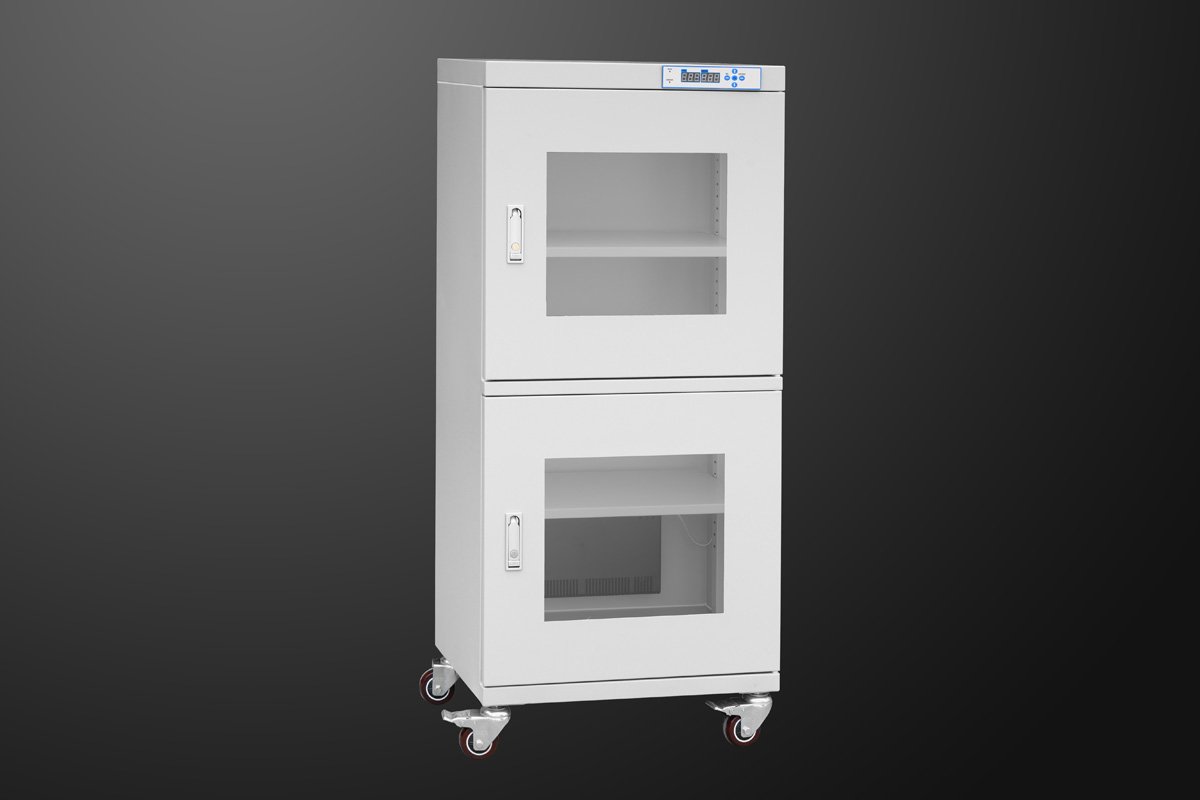

Remark: White color is not ESD safe model
Share to:
Dehumidifying dry cabinets are humidity controlled storage solutions designed to maintain low humidity levels, protecting sensitive items from moisture damage. The cabinet is equipped with a dehumidifier that removes moisture from the air, and the integrated sensor continuously monitor humidity and temperature, ensuring conditions remain stable. If humidity rises above the set level, the dehumidifier will activate automatically.
During SMT reflow, if the humidity in the ambient is high, moisture will invade the electronics. The moisture that penetrates the interior will expand, causing micro-cracks. The damage is invisible, but in some cases, cracks will expand to the surfaces, known as popcorning, causing component repair or even waste.
NetDry dehumidifying dry cabinets create low-humidity storage environments and comply with industry standards J-STD-033. The auto-drying cabinet can also eliminate problems caused by high-temperature baking. It can dehumidify and remove moisture gradually during storage, improving the utilization rates of electronic components.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98BD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98BFD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160BD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160BFD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240BD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240BFD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320BD | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320BFD | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435BD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435BFD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540BD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540BFD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718BD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718BFD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870BD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870BFD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436BD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface
NetDry dehumidifying dry cabinets, also known as dry storage cabinet, uses the latest dehumidifying technology. The entire dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges water outside. This process is automatic, by maintaining low humidity and stable conditions, dehumidifying dry cabinets effectively protect valuable and sensitive items from the damaging effects of moisture.
This chart shows in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
Two years, it covers all spare parts shipping, replacement guide for free.
Galvanized steel with DuPont ESD safe powder coated.
NetDry dry storage cabinets typically monitor humidity levels using high-precision hygrometers, which are sensors designed to measure the moisture content in the air.

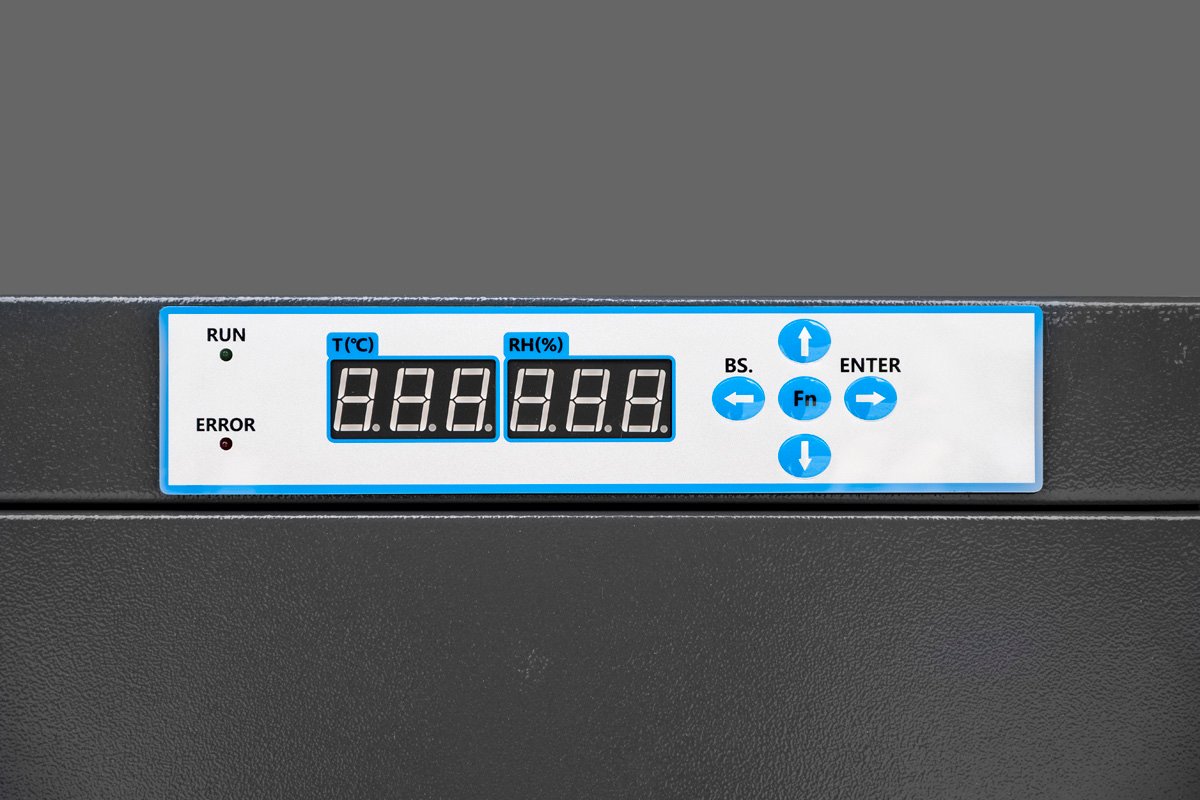

There is a built-in high-precision humidity & temp sensor, detecting and controlling the humidity levels inside, meanwhile, it can also monitor the real-time temperature.
Yes, options like over-humidity buzzer alarm, door opening buzzer alarm, three-color flashing alarm light, data logger with USB interface.
