<3% Electronic Dry Cabinet

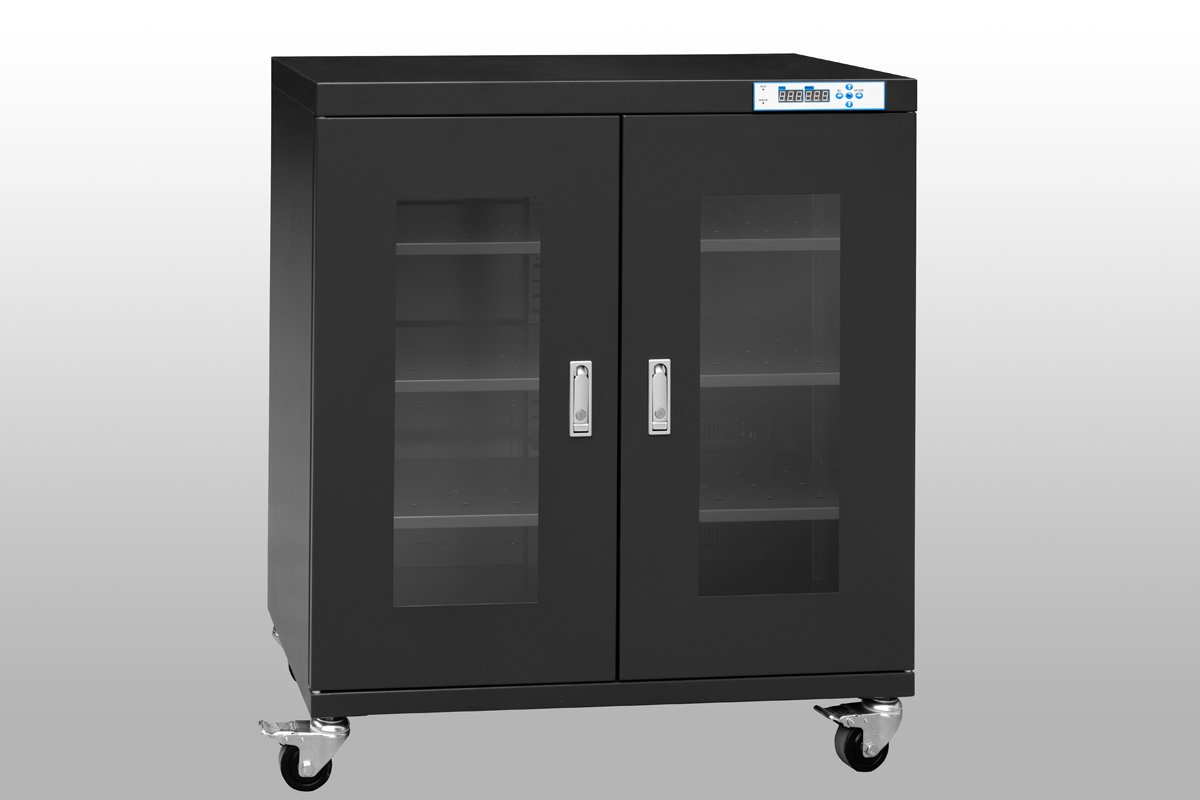

320L Ultra-low Humidity Storage Cabinet MSD Dry Box
Model: TDU320BFD
Color: Black, ESD safe
Humidity Range: <3%RH automatic
Interior Dimension: W898×D422×H848mm
Exterior Dimension: W900×D450×H1010mm
Packing Dimension: W990×D550×H1170mm

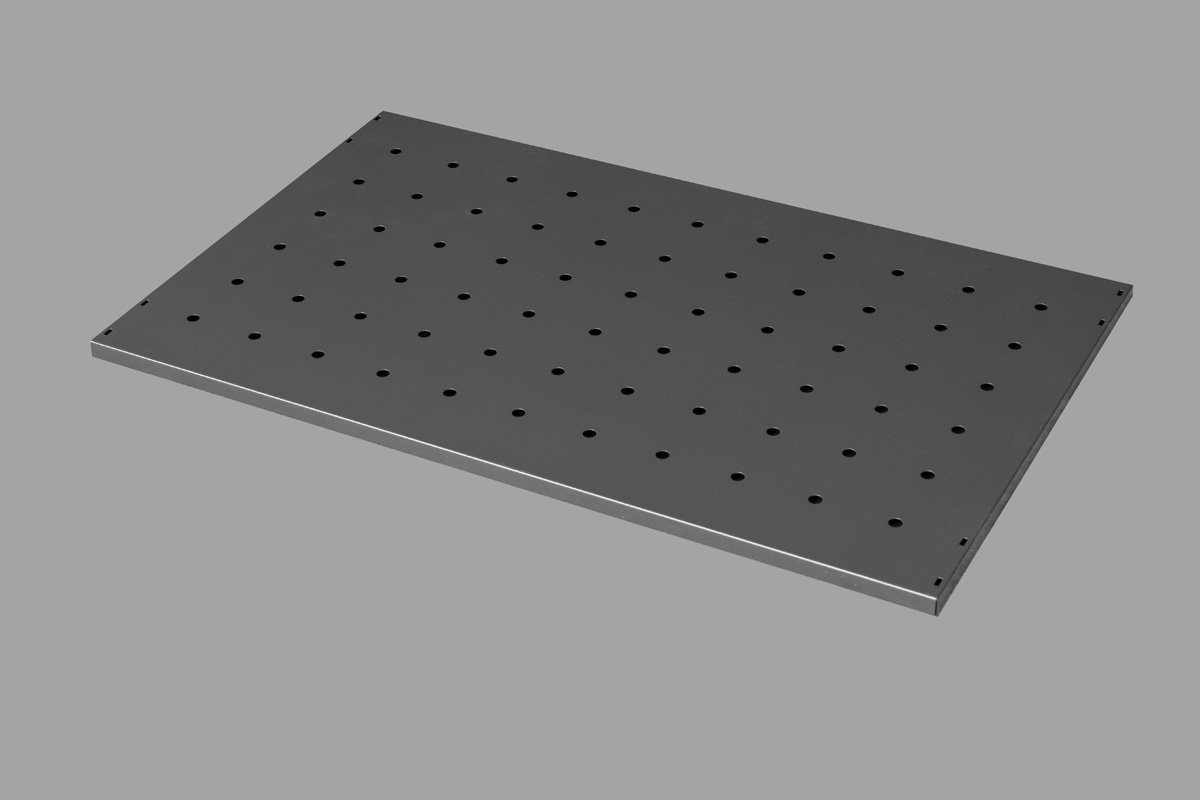

Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ
N.W: 54kg; G.W: 70kg

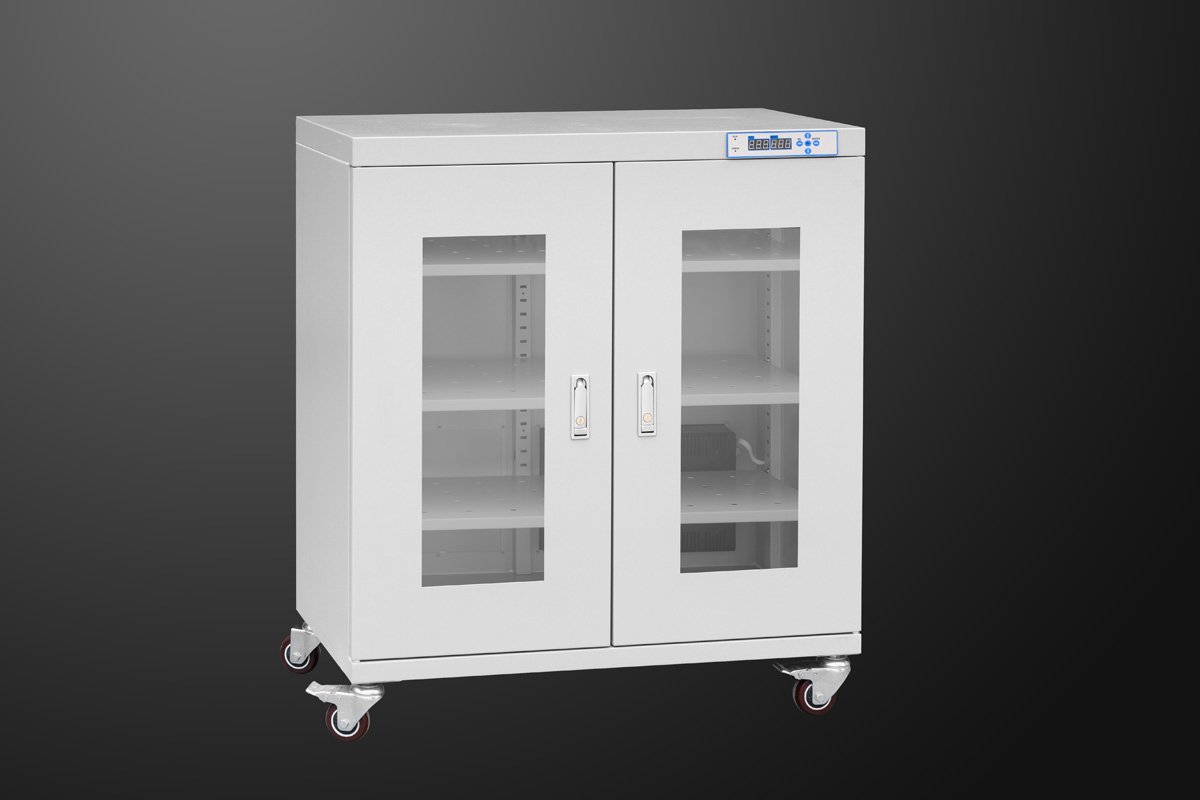

Remark: White color is not ESD safe model
Share to:
Dry cabinet for electronic components is a humidity-controlled storage solution designed to protect sensitive devices from moisture, dust, and static electricity. The drying cabinet maintains a ultra-low humidity environment using electronic dehumidifying systems. If humidity inside the cabinet exceeds the set level, the dehumidifier will be activated automatically.
During SMT reflow, if the humidity in the ambient is high, moisture will invade the electronics. The moisture that penetrates the interior will expand, causing micro-cracks. The damage is invisible, but in some cases, cracks will expand to the surfaces, known as popcorning, causing components repair or even waste.
The dry cabinet for electronic components can solve the above micro-cracking problems by providing a low humidity storage atmosphere, and it complies with industry regulated IPC standard for MSDs. Instead of high-temperature baking, these cabinets dehumidify during storing, which is best suited for removing moisture in SMT production, thereby eliminating damage during reflow.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98BD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98BFD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160BD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160BFD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240BD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240BFD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320BD | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320BFD | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435BD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435BFD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540BD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540BFD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718BD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718BFD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870BD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870BFD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436BD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface
NetDry dry cabinet for electronic components, also known as ESD safe dry cabinet, adopts the latest dehumidifying technology. The entire dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges water outside. This process is automatic, by maintaining low humidity and stable conditions, dehumidifying dry cabinets effectively protect valuable and sensitive items from the damaging effects of moisture.
This chart shows in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
NetDry dry storage cabinets typically monitor humidity levels using high-precision hygrometers, which are sensors designed to measure the moisture content in the air.
There is a built-in high-precision humidity & temp sensor, detecting and controlling the humidity levels inside, meanwhile, it can also monitor the real-time temperature.
Yes, options like over-humidity buzzer alarm, door opening buzzer alarm, three-color flashing alarm light, data logger with USB interface.

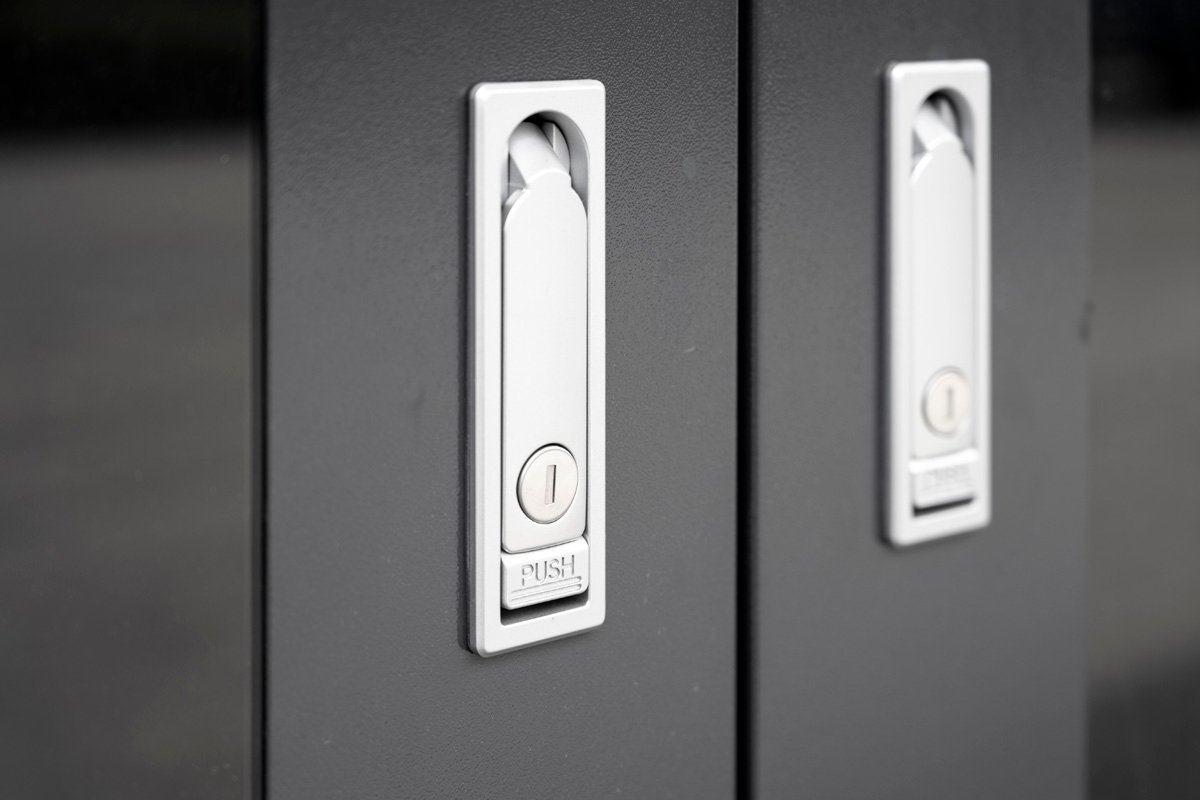

Yes, the zinc alloy lock with key is standard, and the LED light strip and alarm are optional.

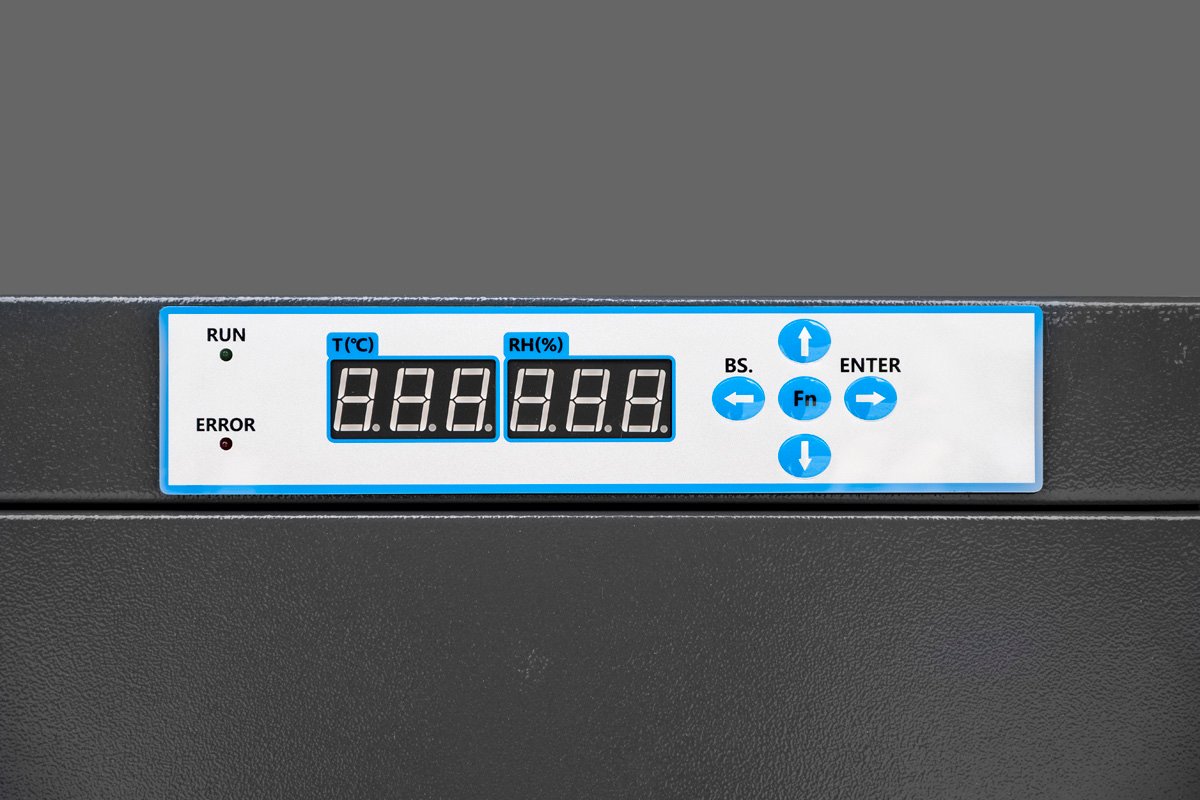

Yes, on dry storage cabinets, you can easily check humidity and temperature levels, they come with digital displays that show real-time readings of both humidity and temperature.
For more details about dry cabinets for electronic components, please send an email to sales@netdrycabinet.com. We will reply to you as soon as possible.
