<3% Electronic Dry Cabinet

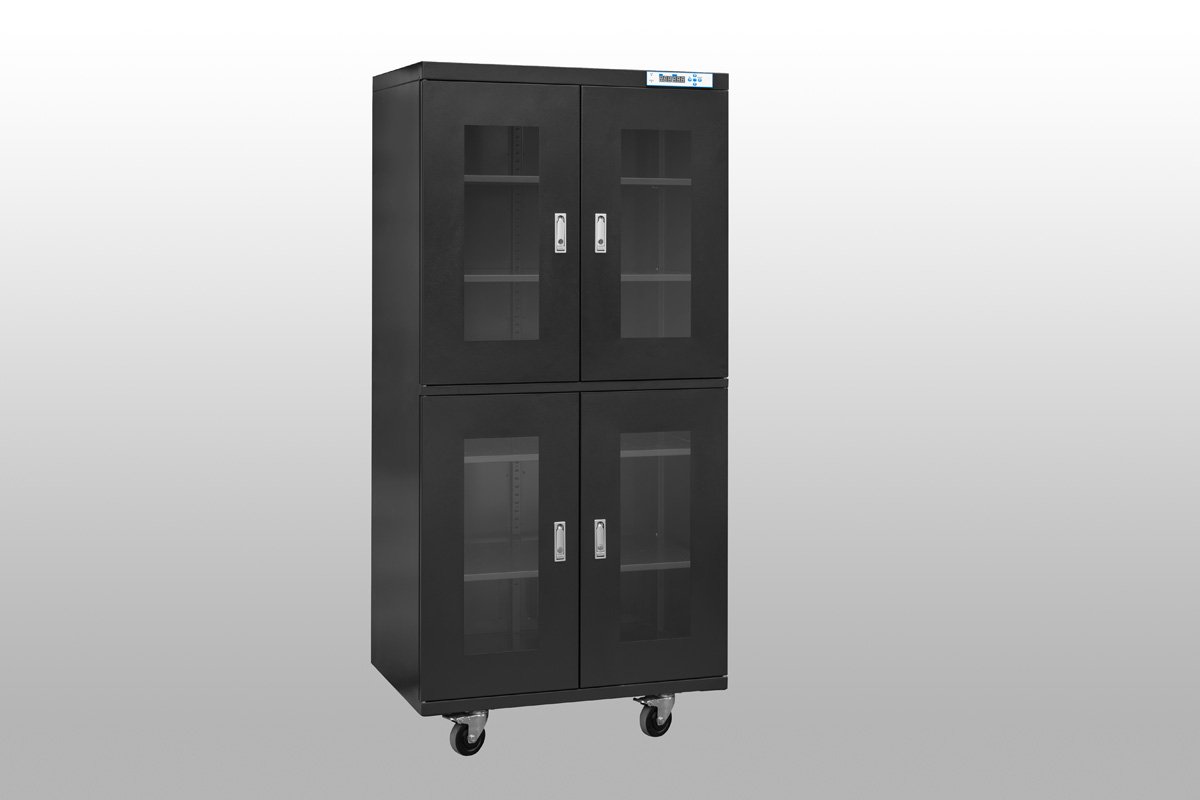

870L Dry Cabinet for Moisture Sensitive Devices, Electronic Humidity Control
Model: TDU870BFD
Color: Black, ESD safe
Humidity Range: <3%RH automatic
Interior Dimension: W898×D572×H1698mm
Exterior Dimension: W900×D600×H1890mm
Packing Dimension: W980×D700×H2080mm

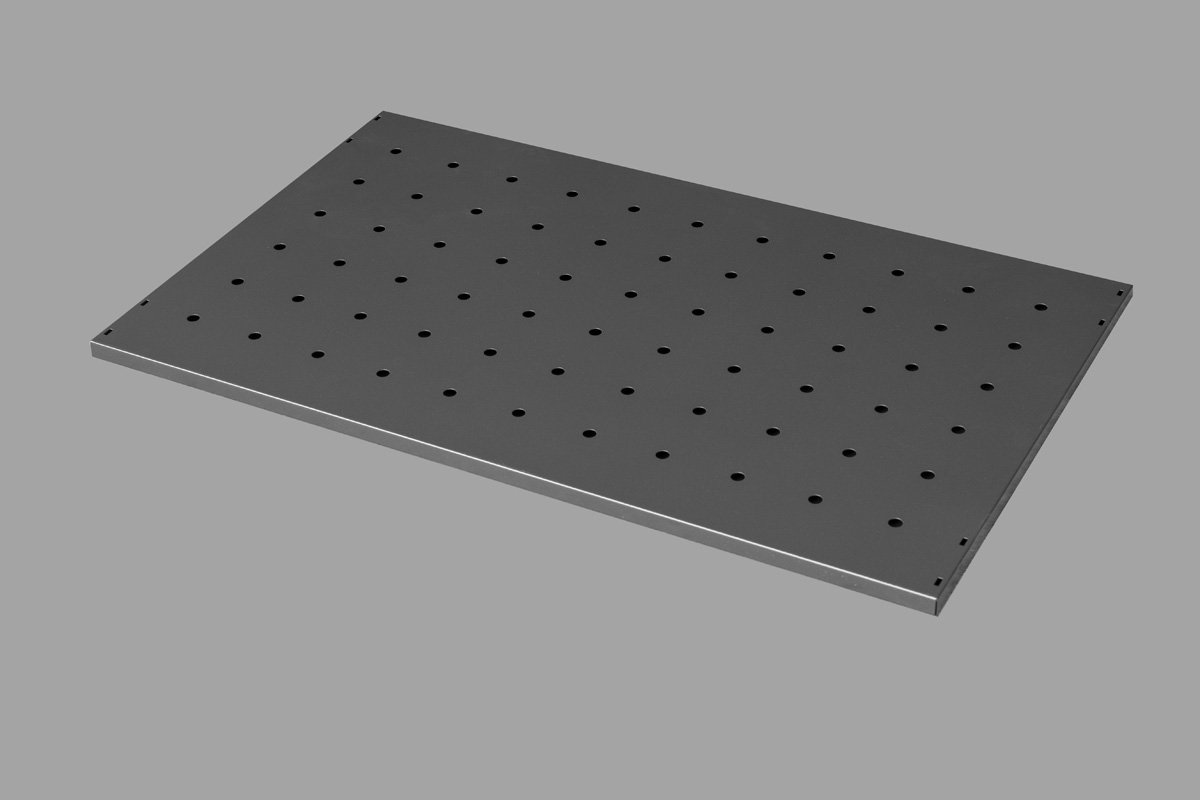

Shelves: 5pcs
Voltage: 110V/220V/230V/240V 50/60HZ
N.W: 100KG;
G.W: 130KG

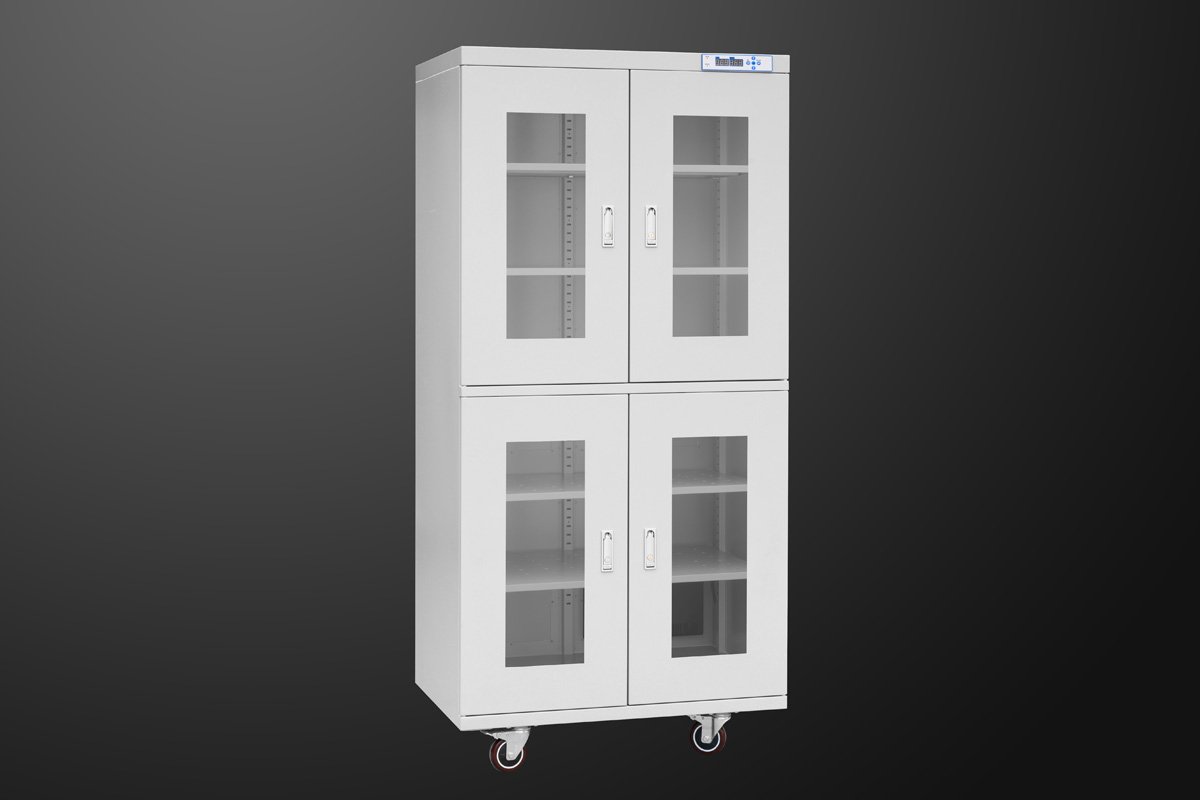

Remark: White color is not ESD safe model
Share to:
A humidity controlled cabinet can maintain a stable and specific humidity level within its interior environment. These cabinets use sensors and control systems to monitor and adjust humidity, ensuring optimal conditions for storing sensitive items such as electronic components, photographic equipment, documents, and other materials that can be affected by moisture.
In Surface Mount Technology (SMT) applications, humidity controlled cabinets are essential to store moisture sensitive components, like solder paste, circuit boards, and other electronic parts.
Maintaining low humidity levels can improve the integrity and performance of electronic components. High humidity leads to moisture absorption in components, particularly during the reflow soldering process. This phenomenon is known as “popcorning,” where moisture trapped expands when heated, causing internal pressure and potential damage.
That is why controlling humidity in the storage environment before assembly is crucial. Using dry cabinets helps minimize the risk by keeping components in a low-humidity environment, thereby reducing moisture absorption. NetDry cabinets follow industry-regulated IPC standards.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98BD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98BFD | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160BD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160BFD | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240BD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240BFD | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320BD | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320BFD | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435BD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435BFD | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540BD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540BFD | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718BD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718BFD | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870BD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870BFD | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436BD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436BFD-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface
Humidity controlled storage cabinets feature patented dehumidifying technology, and provide an excellent solution for protecting moisture-sensitive devices, especially in electronics manufacturing and storage.

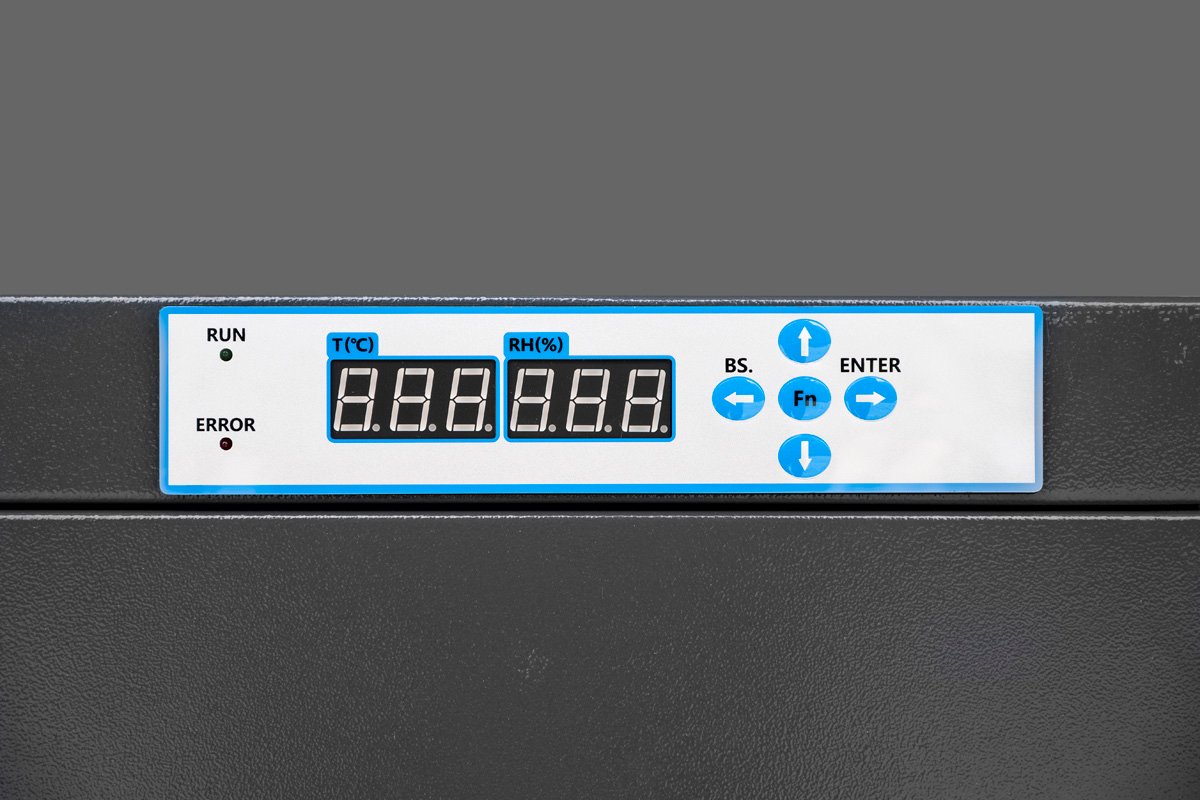

The dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges the water outside.
Under ambient 25 degrees C, humidity 50%RH, open door 30 seconds and then close, the humidity will recover to <3%RH within 30 minutes, see the chart below:
By controlling humidity, these dry cabinets help extend the lifespan and maintain the quality of sensitive items in various industry.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
Yes, all NetDry humidity control cabinets are CE-approved, and follow J-STD-03 standards.
Depending on the humidity range selected, the lower the humidity, the higher the price.
Two years warranty. We send you spare parts for free and provide installation videos/guides, the cabinet adopts a module design and is easy to replace.
Yes, pls send us your technical requirements in detail, and we will make a drawing for your confirmation first.
Achieve and maintain low humidity through dehumidifiers, sealing, sensors, and a controlling system.
