<5% Electronic Dry Cabinet

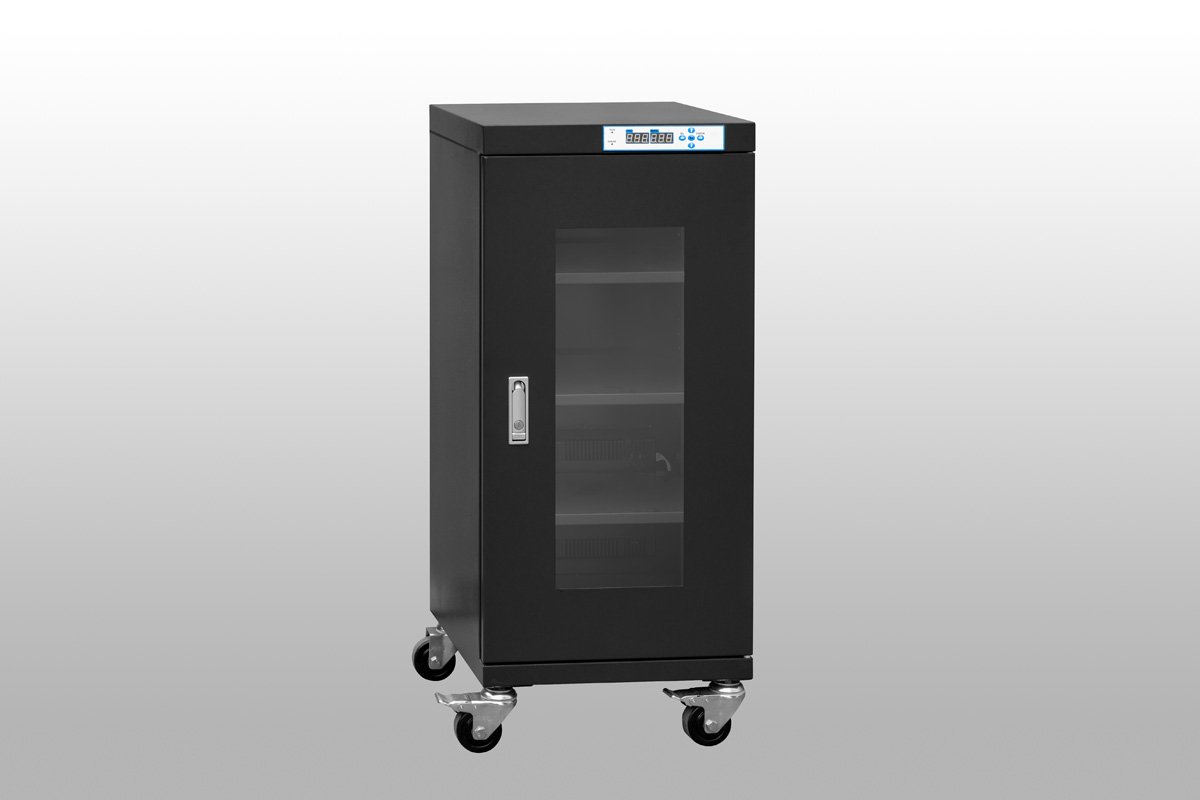

160L ESD Electronic dry cabinet humidity control storage
Model: TDU160F
Color: Black, ESD safe
Humidity Range: <5%RH automatic
Interior Dimension: W446×D422×H848mm
Exterior Dimension: W448×D450×H1010mm
Packing Dimension: W550×D550×H1160mm

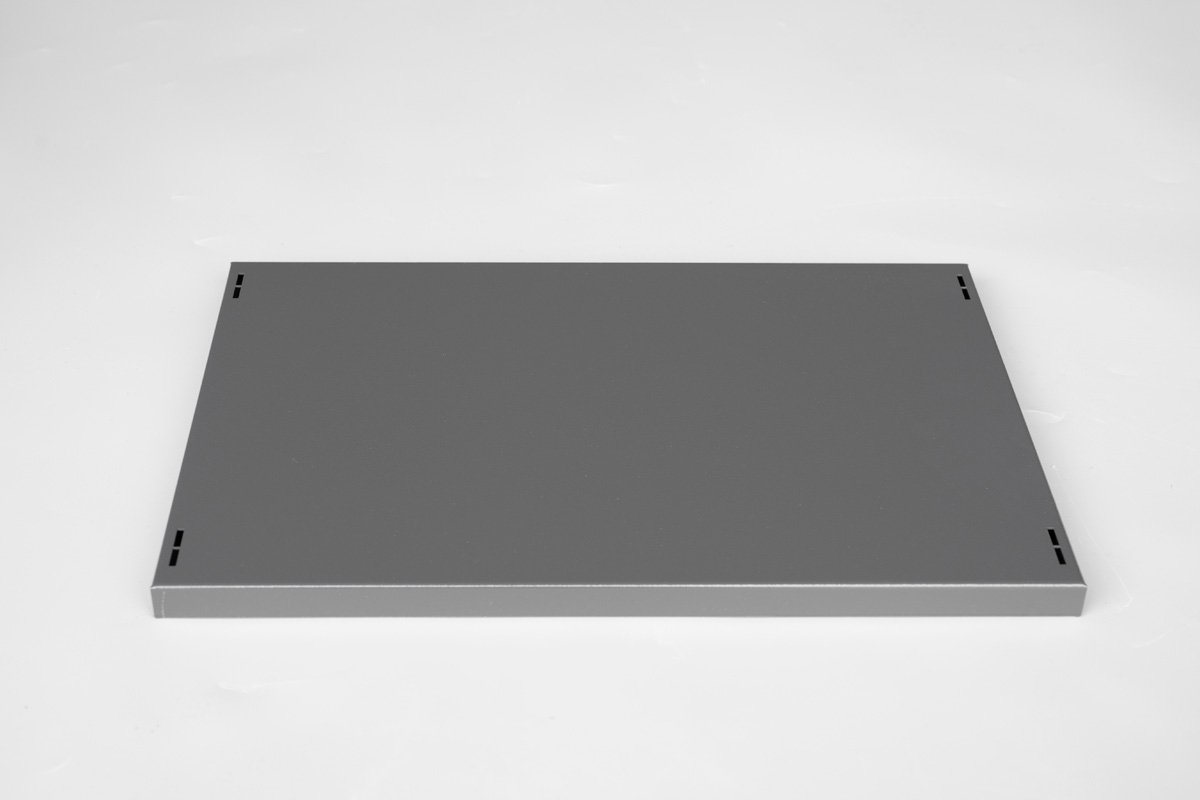

Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ

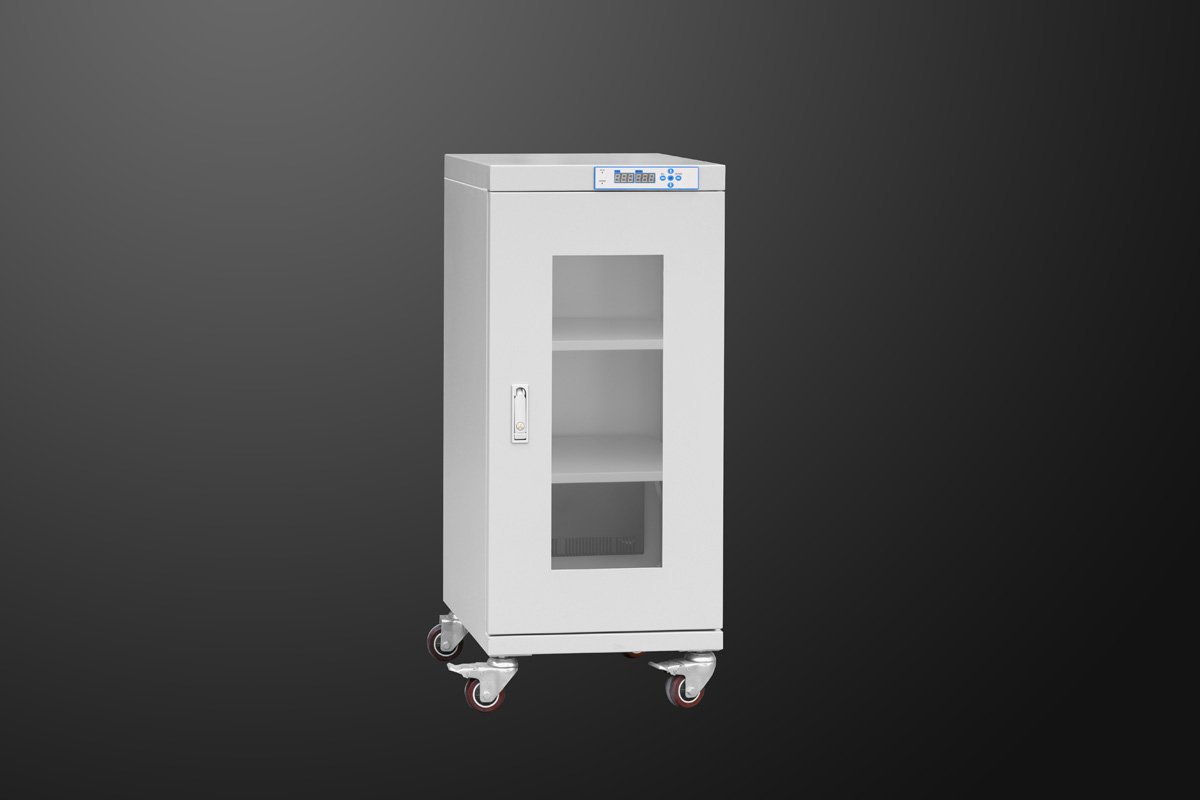

Remark: White color is not ESD safe
Share to:
A humidity controlled storage cabinet can preserve sensitive items while providing humidity control and electrostatic discharge (ESD) protection. These cabinets are ideal for electronics such as PCBs (Printed Circuit Boards), semiconductors, and other components vulnerable to moisture and static electricity.
Humidity can lead to microcracking in sensitive electronics and materials that undergo thermal or mechanical stress, when materials absorb moisture and expand, they experience internal stress, because different parts of the material may expand unevenly. This stress, especially if there’s repeated swelling and shrinking due to fluctuating humidity, can cause tiny cracks to form internally.
Protective coatings and proper material selection can mitigate the risk of microcracking in high-humidity environments. Moreover, storing items in a humidity controlled storage cabinet (e.g., <5%RH, <10%RH, 40 deg C baking for sensitive electronics) can also effectively reduce moisture exposure and prevents microcracking.
Key Features of humidity controlled storage cabinets:
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98 | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98F | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160 | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160F | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240 | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240F | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320 | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320F | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435 | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435F | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540 | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540F | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718 | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718F | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870 | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870F | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface

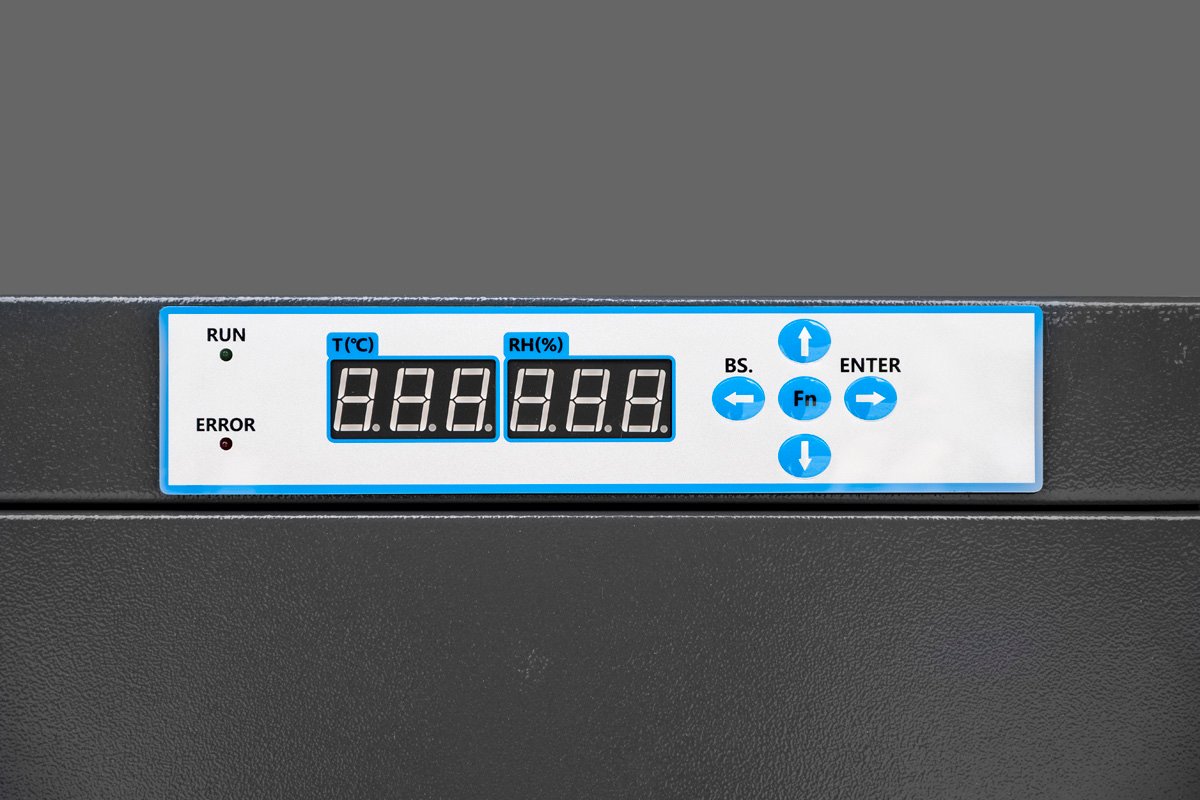

The electronic drying storage cabinet uses a 5A molecular sieve, which is the latest dehumidifying technology. The system is controlled by a microcomputer. When the indoor humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges the water outside. This cycle repeats itself and is controlled automatically.
This chart shows, in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
5%-1%RH | Open IC packages, PCB packages, microelectronics, MSDS, etc. |
Yes, a dry cabinet is highly recommended for storing PCB boards, especially in industries like electronics manufacturing and assembly, where precision and reliability are crucial. PCB boards, whether blank or populated with components, are sensitive to environmental factors, particularly humidity. Here’s why a dry cabinet is often necessary:
The time it takes for a dry cabinet to reduce humidity levels to below 5% RH depends on several factors, including the cabinet’s size, the initial humidity level, the type of dehumidifying system, and how much moisture is present in the items stored.
Under normal circumstances, when the ambient temperature is 25 deg C and the humidity is < 60%RH, if the door opening time is within 15 seconds, the humidity can reach below 5%RH within 15-30 minutes.
Each part can be easily replaced, as long as you know how to use a screwdriver.
No, it runs silently.
Prices depend on the humidity series and volumes you need.
