<5% Electronic Dry Cabinet

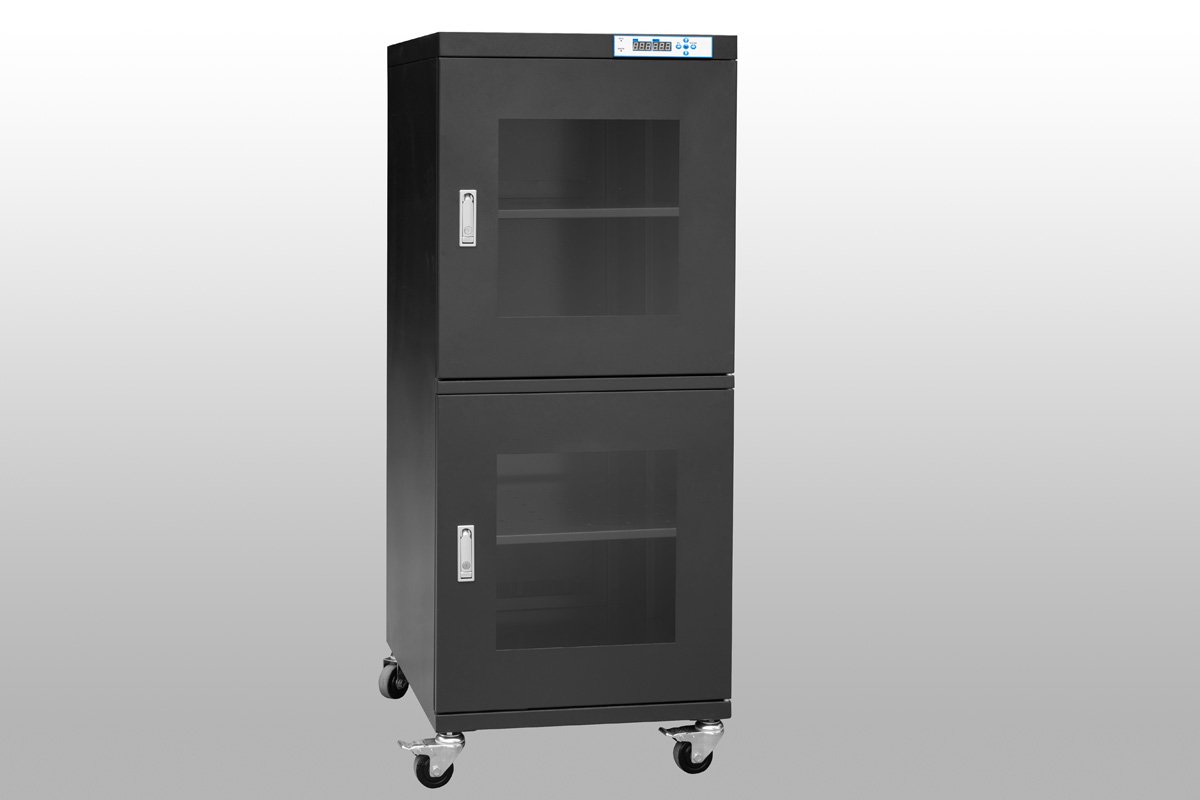

240L Humidity controlled drying and storage cabinet dry box
Model: TDU240F
Color: Black, ESD safe
Humidity Range: <5%RH automatic
Interior Dimension: W596×D372×H1148mm
Exterior Dimension: W598×D400×H1310mm
Packing Dimension: W680×D490×H1500mm

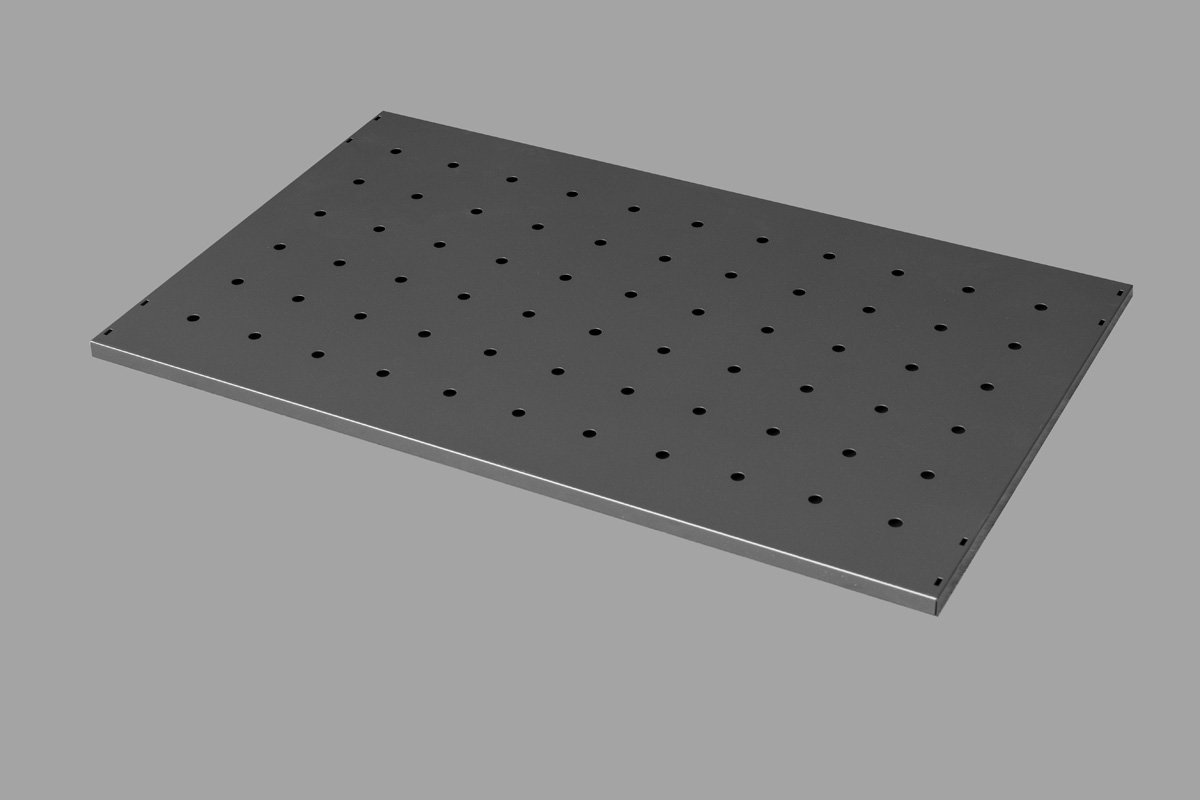

Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ

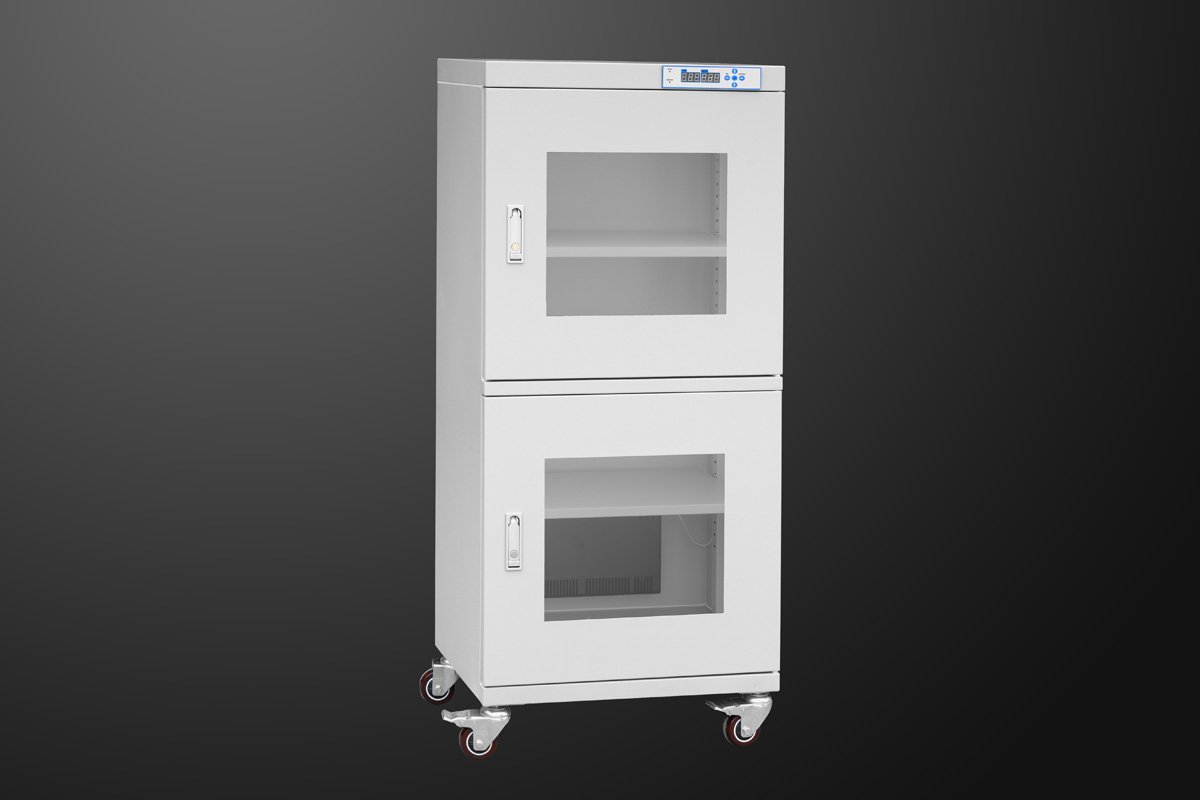

Remark: White color is not ESD safe
Share to:
Drying and storage cabinet can store moisture-sensitive items while providing humidity control and ESD-safe protection. These cabinets are used in electronic components, such as PCBs (Printed Circuit Boards), semiconductors, and other components vulnerable to moisture and static electricity.
Many electronic components are encased in polymeric materials, like plastics or epoxy encapsulants. These materials can absorb moisture from the air, especially in high-humidity environments. As they swell due to moisture, they create internal stress in the material structure, leading to microcracking in the encapsulant or substrate.
Understanding and mitigating moisture-induced microcracking is essential. Moisture-barrier packaging for storage and transportation can keep sensitive components protected. Moreover, storing items in a humidity controlled low-humidity environments (such as dry cabinets ) can reduce moisture exposure.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98 | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98F | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160 | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160F | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240 | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240F | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320 | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320F | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435 | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435F | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540 | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540F | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718 | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718F | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870 | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870F | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface

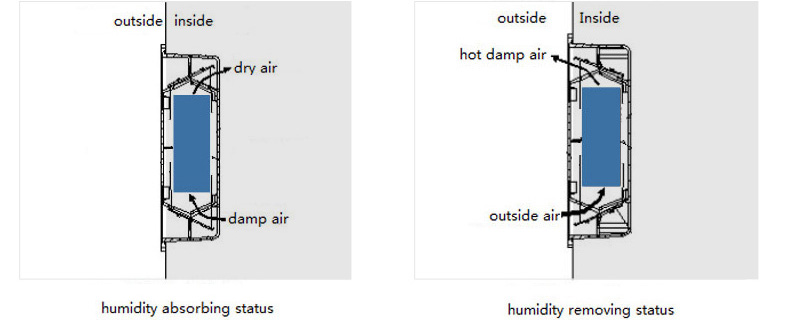

Drying and storage cabinet, also known as auto dry cabinet, use the latest dehumidifying technology. The dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges water outside. This process is automatic, by maintaining low humidity and stable conditions, dehumidifying dry cabinets effectively protect valuable and sensitive items from the damaging effects of moisture.
This chart shows, in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Drying and storage cabinets offer protection, reliability, and convenience, making them an invaluable tool for preserving sensitive items.
Using drying and storage cabinets offer numerous benefits for preserving sensitive items, particularly in fields like electronics, optical fibers, laboratories, and instruments storage. These cabinets provide controlled, low-humidity environments to prevent moisture-related damage.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
No consumables, and if any parts malfunction during warranty, we will send you parts for installation for free.
No for dry cabinets, but if you select N2 cabinet, N2 gas is consumable.
Yes, we received great feedback from customers in different countries.
It works reliably without any issues.
Within 12 hours.
For more details about drying and storage cabinets, please send an email to sales@netdrycabinet.com. We will reply to you as soon as possible.
