<5% Electronic Dry Cabinet

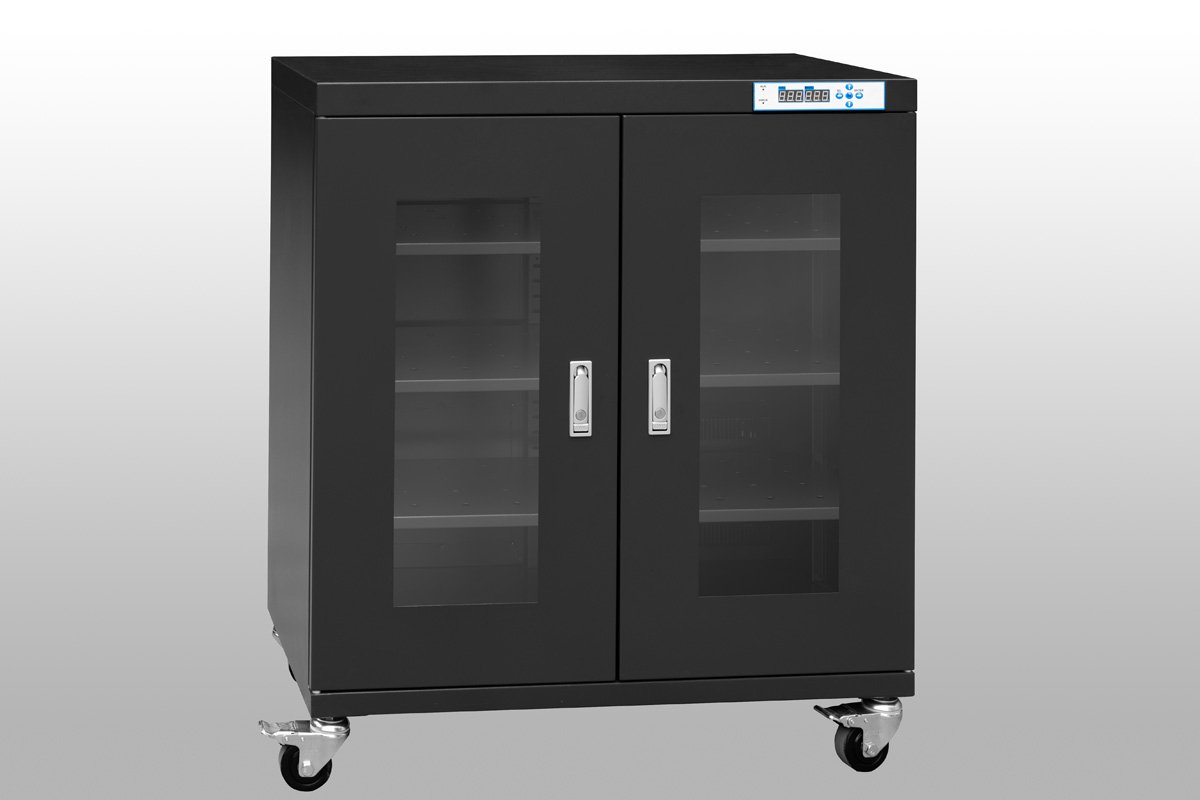

320L Digital Low Humidity Control Dehumidify Moisture Proof Dry Box Storage Cabinet
Model: TDU320F
Color: Black, ESD safe
Humidity Range: <5%RH automatic
Interior Dimension: W898×D422×H848mm
Exterior Dimension: W900×D450×H1010mm
Packing Dimension: W990×D550×H1170mm

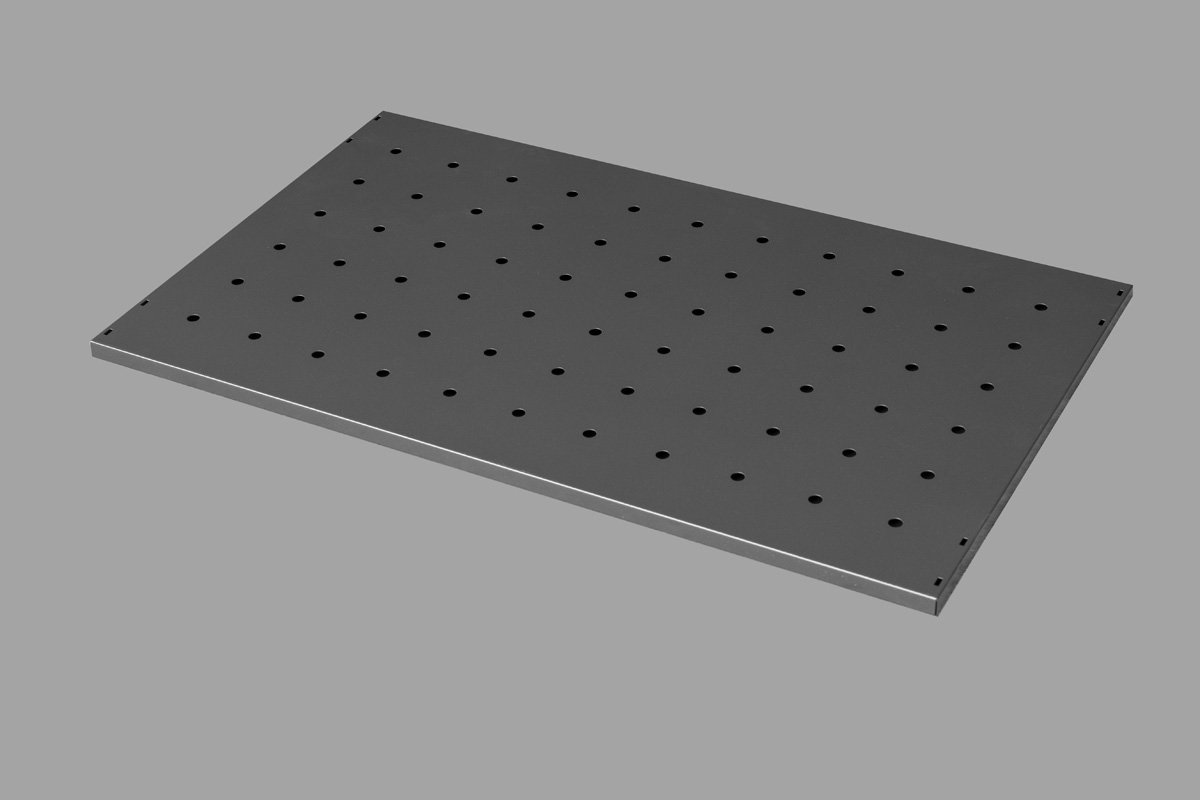

Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ

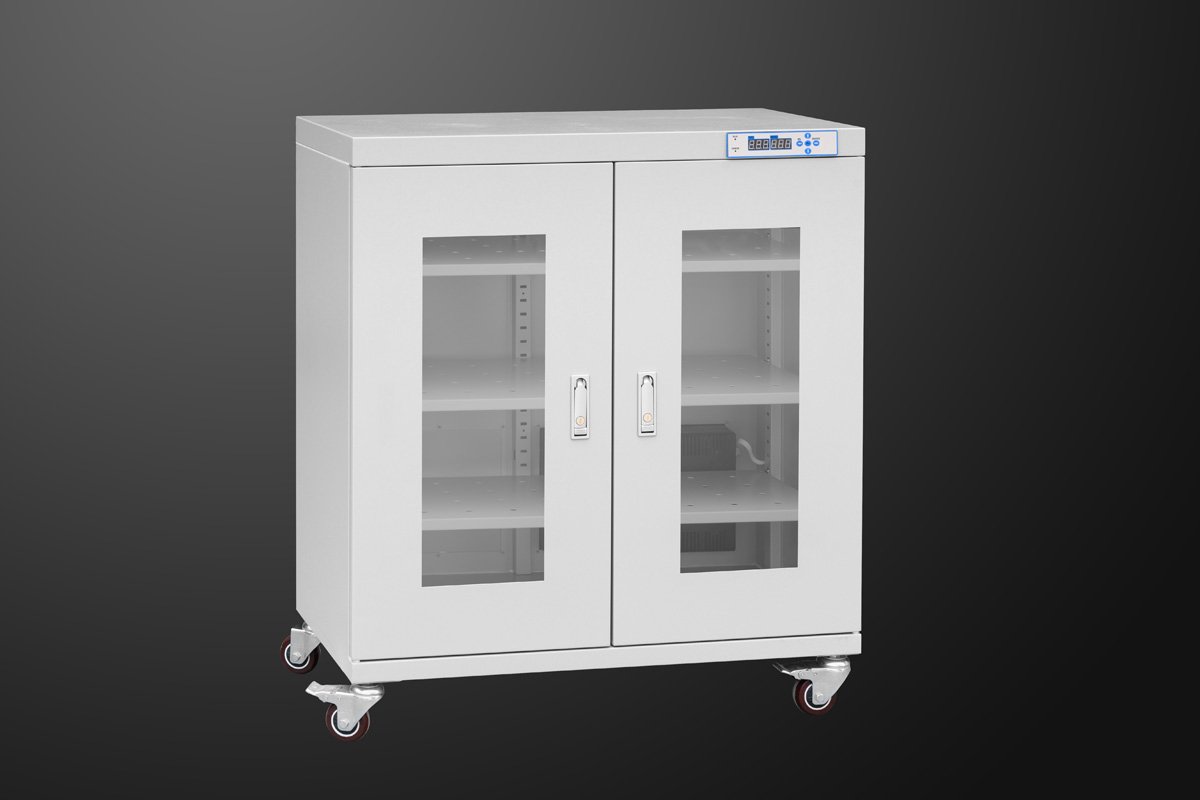

Remark: White color is not ESD safe
Share to:
A dry box for electronic components is a humidity-controlled storage cabinet designed to protect sensitive electronic parts and devices from moisture-related issues like micro-cracks, and electrostatic discharge (ESD). Ideal for items such as semiconductors, PCBs (Printed Circuit Boards), and other moisture-sensitive devices, the dry box creates a stable, low-humidity environment to ensure long-term preservation.
Humidity is a serious concern in the EMS industry, particularly when dealing with sensitive components such as PCBs, chips, and other microelectronic devices.
Once a microcrack starts to form, moisture can be drawn deeper into the material through capillary action, further exacerbating the cracking. In semiconductors and high-precision electronics, this can degrade performance by allowing additional contaminants and moisture into sensitive areas.
How to prevent microcracks?
Humidity-Controlled Storage: Storing electronics in controlled, low-humidity environments (such as dry cabinets or dehumidified rooms) can reduce exposure to moisture.
Protective Conformal Coatings: Conformal coatings applied over circuit boards can shield components from moisture.
Proper Packaging: Moisture-barrier packaging for storage and transportation can keep sensitive components protected.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98 | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98F | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160 | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160F | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240 | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240F | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320 | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320F | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435 | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435F | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540 | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540F | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718 | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718F | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870 | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870F | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface

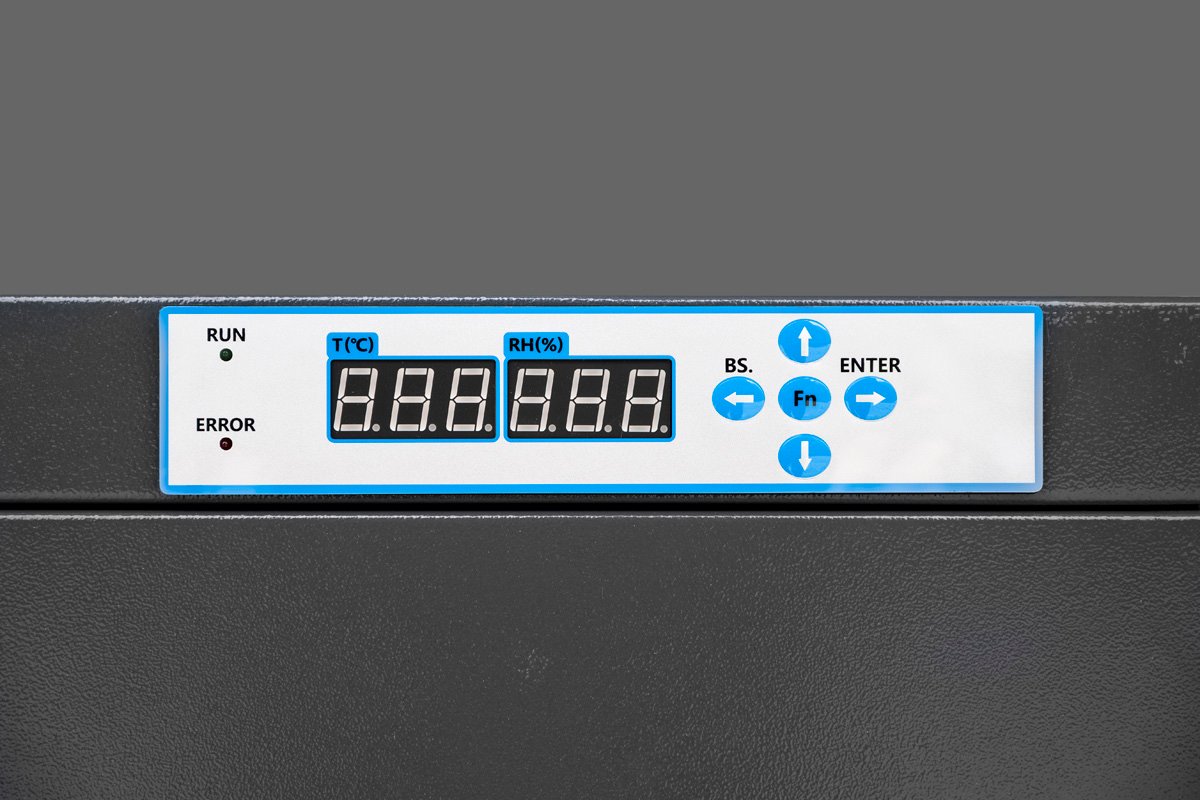

A dry box for electronic components, also called auto dry cabinet, adopts the latest dehumidifying technology. The entire dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges water outside. This process is automatic, by maintaining low humidity and stable conditions, dehumidifying dry cabinets effectively protect valuable and sensitive items from the damaging effects of moisture.
This chart shows, in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Drying and storage cabinets offer protection, reliability, and convenience, making them an invaluable tool for preserving sensitive items.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
Yes, a dry cabinet is a valuable investment for storing PCB boards, ensuring they remain in pristine condition throughout their storage period. It prevents moisture-related defects, reduces operational costs, and ensures compliance with industry standards. For companies involved in PCB manufacturing, assembly, or repair, dry cabinets are not just an option—they are a necessity.
Let me know if you’d like assistance selecting a dry cabinet suitable for PCB storage!
A: We provide door-to-door and seaport-to-seaport service, and we decide whether to transport by sea, air, or truck according to your timeliness.
A: The price depends on the humidity series and quantity you need.
A: No, it works reliably without any common issues.
A: We calibrate it before ex-factory, the sensor long-term drift is <0.25 each year, there is offset setting in our controller, pls contact us for guidance.
For more details about dry box for electronic components, please send an email to sales@netdrycabinet.com. We will reply to you as soon as possible.
