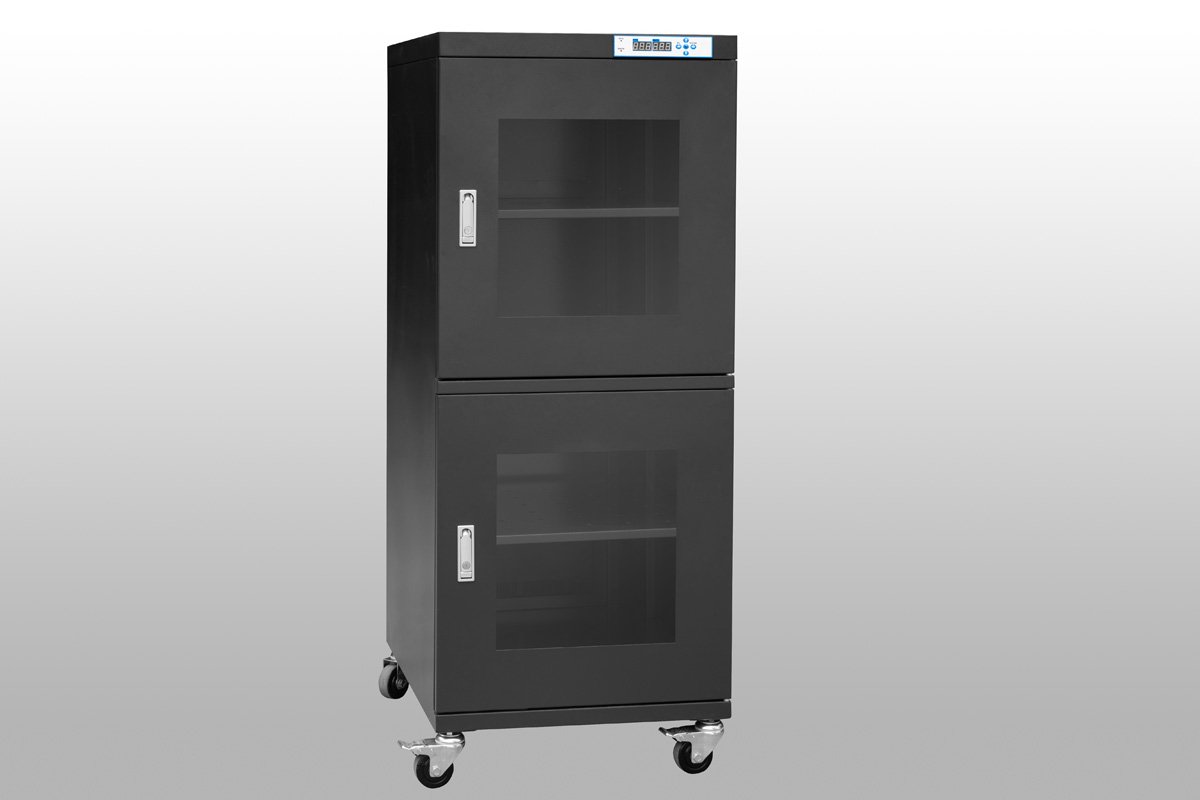

<5% Electronic Dry Cabinet
540L Humidity controlled drying and storage cabinets, for humidity control storage
Model: TDU540F
Color: Black, ESD safe
Humidity Range: <5%RH automatic
Interior Dimension: W596×D682×H1298mm
Exterior Dimension: W598×D710×H1465mm
Packing Dimension: W810×D700×H1610mm

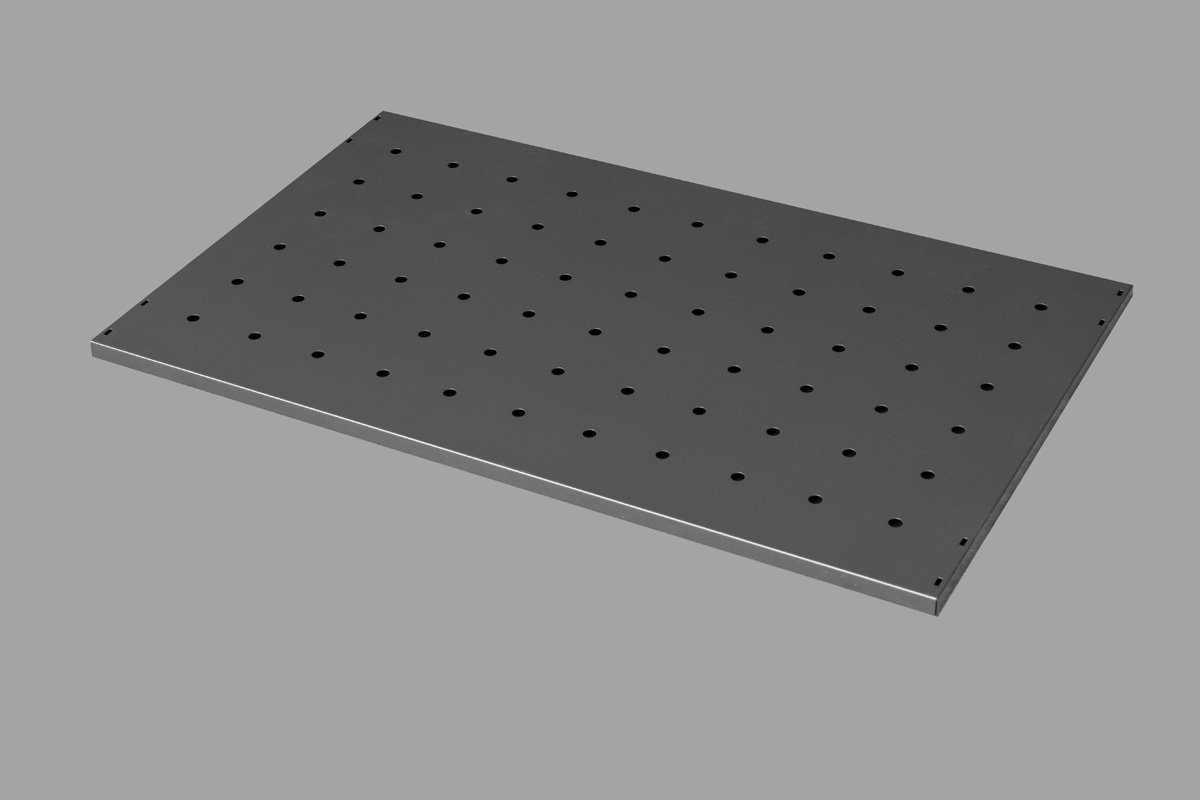

Shelves: 3pcs
Voltage: 110V/220V/230V/240V 50/60HZ

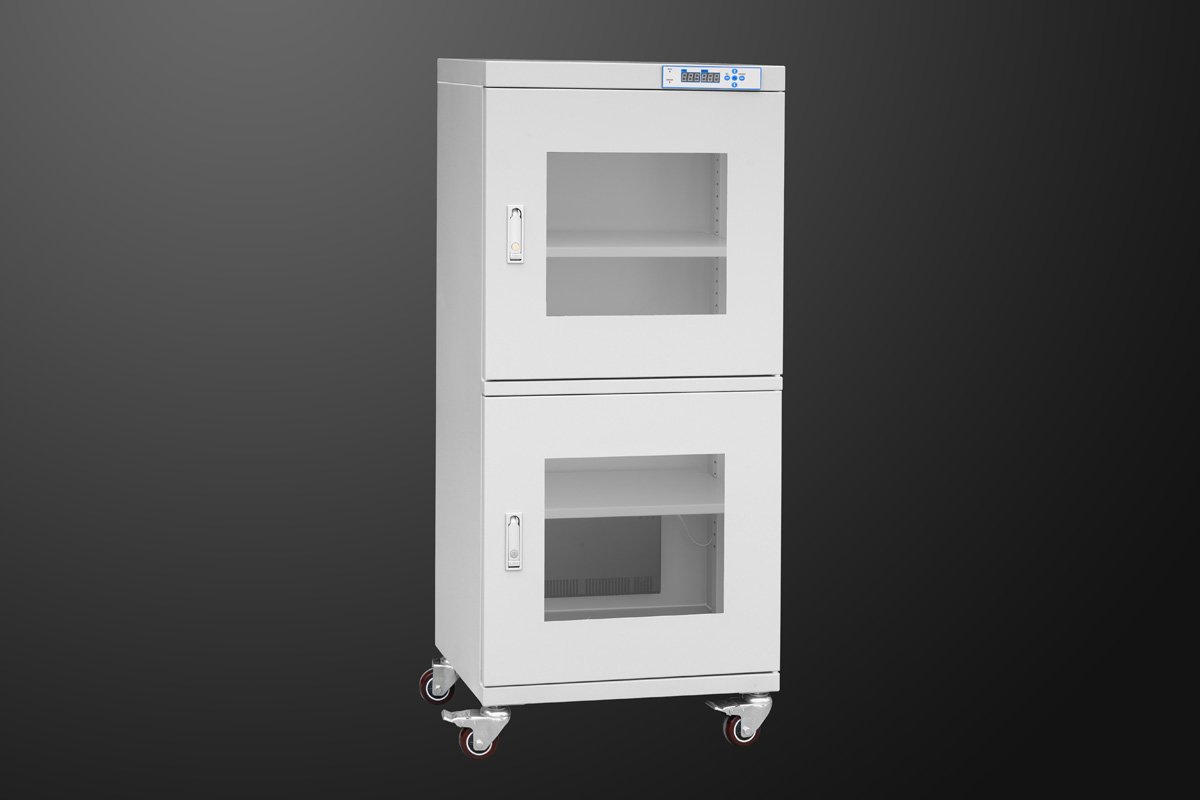

Remark: White color is not ESD safe
Share to:
Dry Box Humidity Control are varied drying cabinets for sale, including industrial dry storage cabinets, nitrogen humidity-controlled storage cabinets, and N2 cabinets. These cabinets are more suitable for those who have high requirements for humidity recovery. We also have different RH ranges of desiccant storage cabinets for your selection.
During the reflow process, trapped moisture can vaporize and expand rapidly. This expansion creates internal pressure that lead to cracks or delamination in the components. This phenomenon is particularly concerning for surface-mounted devices (SMDs) and compromise assembly reliability.
Dry Box Humidity Control provides a low humidity storage atmosphere, which can remove moisture from electronics in reflow soldering production, thereby eliminating damage during reflow by following JEDEC-STD-033D standard.
Model | Capacity | Interior Dimension (W×D×H,mm) | Exterior Dimension (W×D×H,mm) | Gross Weight (KG) | Average Power (Watts) | Max. Loading /Shelf(KG) |
TDU98 | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU98F | 98L | 446×372×598 | 448×400×688 | 31 | 6 | 50 |
TDU160 | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU160F | 160L | 446×422×848 | 448×450×1010 | 43 | 10 | 50 |
TDU240 | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU240F | 240L | 596×372×1148 | 598×400×1310 | 57 | 10 | 50 |
TDU320 | 320L | 898×422×848 | 900×*450×1010 | 70 | 40 | 80 |
TDU320F | 320L | 898×422×848 | 900×450×1010 | 70 | 40 | 80 |
TDU435 | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU435F | 435L | 898×572×848 | 900×600×1010 | 82 | 40 | 80 |
TDU540 | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU540F | 540L | 596×682×1298 | 598×710×1465 | 95 | 60 | 80 |
TDU718 | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU718F | 718L | 596×682×1723 | 598×710×1910 | 105 | 60 | 80 |
TDU870 | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU870F | 870L | 898×572×1698 | 900×600×1890 | 130 | 80 | 100 |
TDU1436-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-4 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
TDU1436F-6 | 1436L | 1198×682×1723 | 1200×710×1910 | 189 | 120 | 100 |
Option:
1) Over-humidity alarm buzzer
2) Door-opening alarm buzzer
3) Three-color alarm flashing light
4) Data logger with USB interface

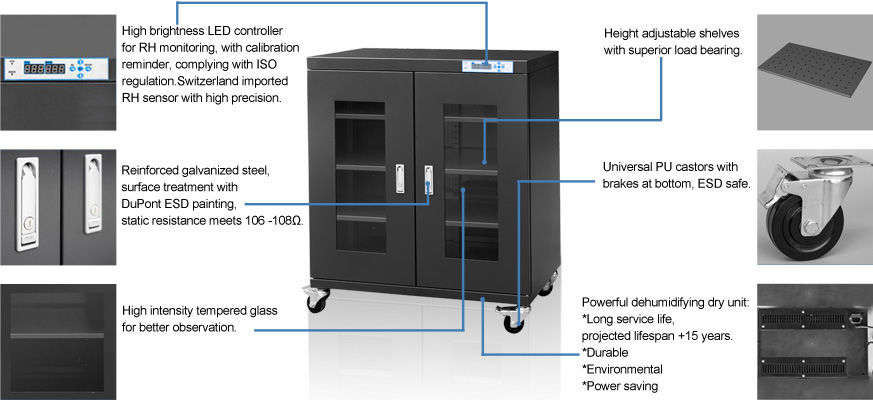

Dry Box Humidity Control uses the active dehumidifying system to maintain low RH levels, automatically adjusting to changes in humidity. This allows sensitive items to be stored safely and protected from moisture-related issues and electrostatic discharge (ESD).

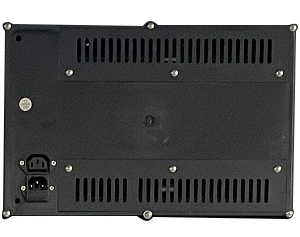

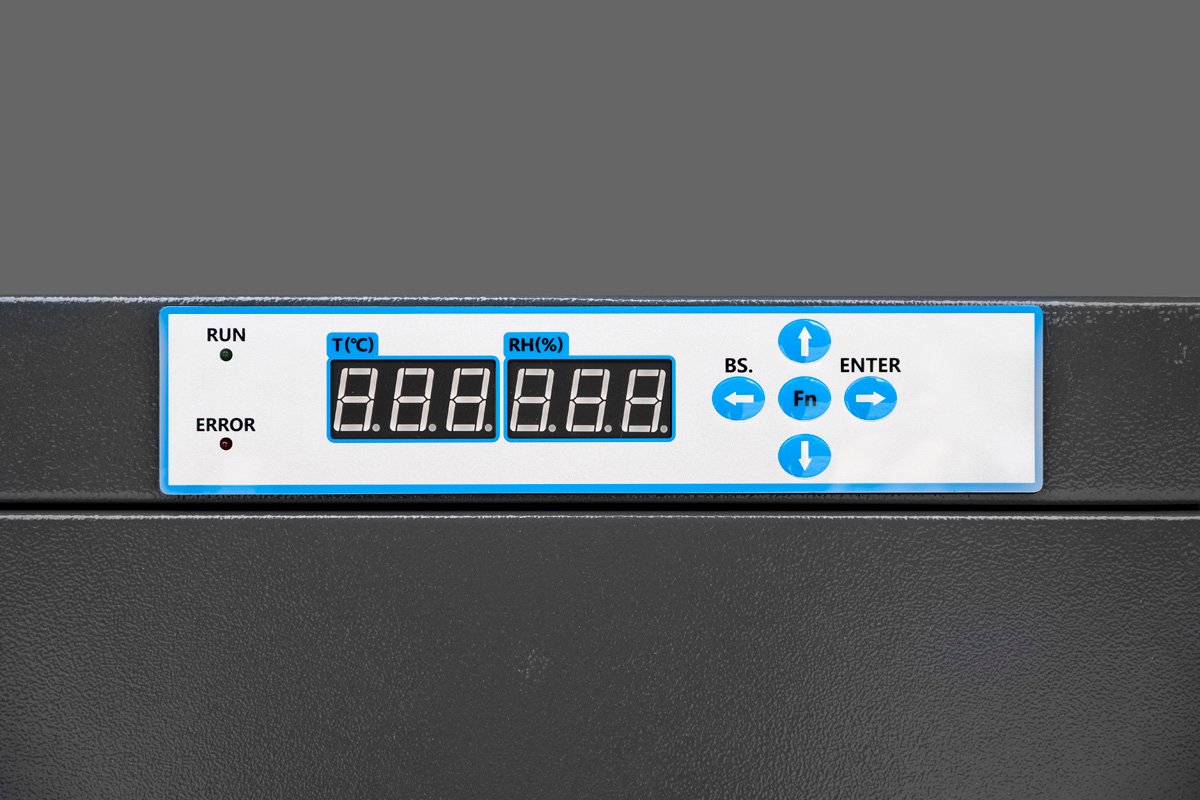

The dehumidifying system is controlled by a microcomputer. When the internal humidity is high, it starts to absorb moisture; when the humidity reaches the set value, it stops absorbing water and discharges water outside. This process is automatic.

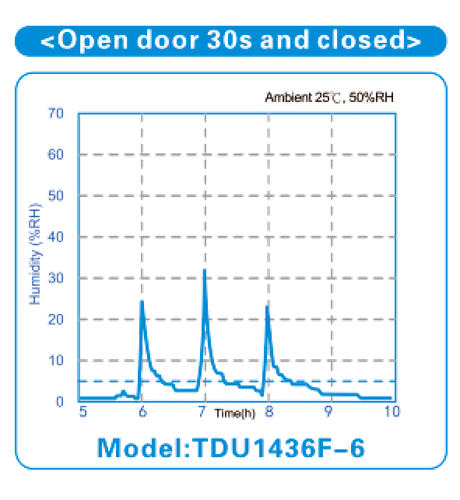

This chart shows, in the ambient 25 degree C, humidity 50%RH, open door 30 seconds and then close, the humidity can recover to the set point within 30 minutes.
Relative Humidity | Suggested storage items |
55%~45%RH | Tapes, CD, lenses, microscope,photograph, oil paintings, stamps, coins, antiques, leather goods, negative, drawings, album, slides, industrial design, etc |
45%~35%RH | Optical lenses, precision instruments, camera, lenses, measuring tools,capacitors, batteries, EI, light sources, crystal, PCB, detector, charger, microscopes, endoscopes, electronic appliance, magnetic tape, chemical, tea, coffee, seeds, cigarette, etc. |
35%~20%RH | Samples,filters, precision dies,measurement instruments, pollen, all electronic components, PCB, wafer, metallic powders, semiconductors, medical supplies etc. |
10%~20%RH | Electronic components, PCB, crystal, chemical, LED and other complicated electronic components, etc. |
10%-1%RH | IC, BGA, copper, silver, and materials very sensitive to humidity,etc |
A: Yes, we have standard models in stock.
A: We provide door-to-door and seaport-to-seaport service, and we decide whether to transport by sea, air, or truck according to your timeliness.
A: The price depends on the humidity series and quantity you need.
A: The dry unit service life is +15 years, it’s fixed onto the dry cabinet by screws, just need a screwdriver to replace it.
For more details about dry box humidity control, please send an email to sales@netdrycabinet.com. We will reply to you as soon as possible.
